Flexible Mesh LED Display

Flexible Mesh LED Display

Flexible grid LED displays are a cutting-edge technology that combines flexibility, visual impact and ease of installation for a wide range of applications, from building facades and event staging to retail displays and digital signage.

Optional lamp arrangement

Flexible Mesh LED Display Series

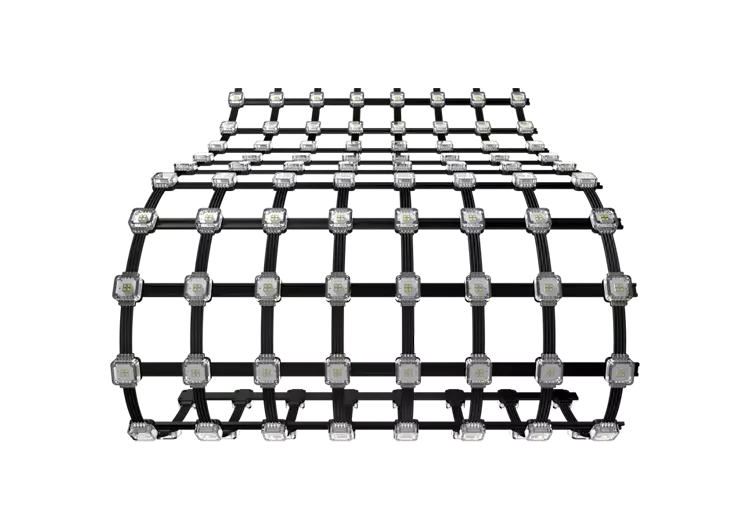

HDC mesh LED screen is a flexible transparent LED display, which has the characteristics of bendability, folding, winding, hanging, high brightness, waterproof, etc. It can be freely combined into various shapes, which is very artistic, ornamental, creative, and shows the beauty of special shapes. It is widely used in various creative shapes in the fields of building exterior walls, indoor commercial displays, major festivals, cultural tourism night tours, etc.

Pixel Pitch

35mm, 40mm, 55mm, 80mm,100mm, 110mm, 160mm, Xmm

Product Features

  • Transparency: 30-95%
  • Brightness: 1000-7200CD/m²
  • IP Rating: IP66
  • Weight: <5g/Pixel
  • Refresh rate： 3840HZ

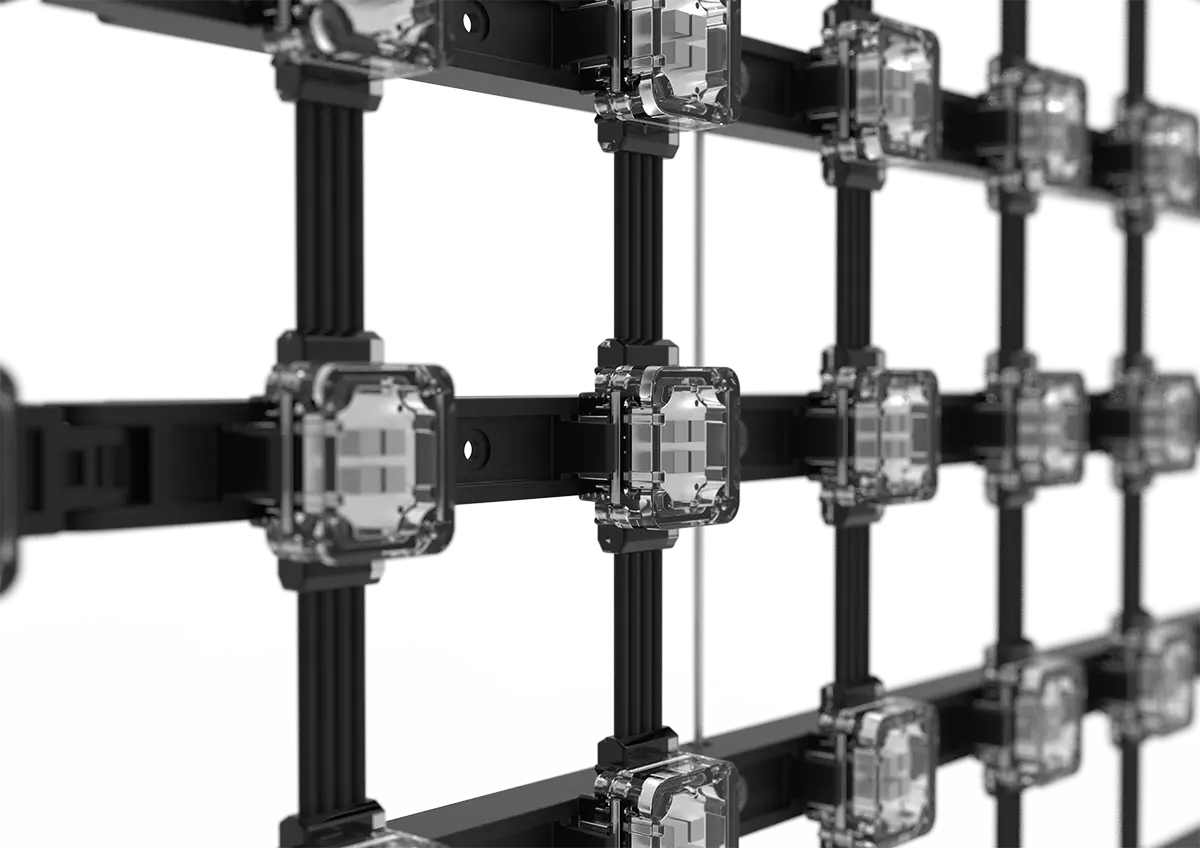

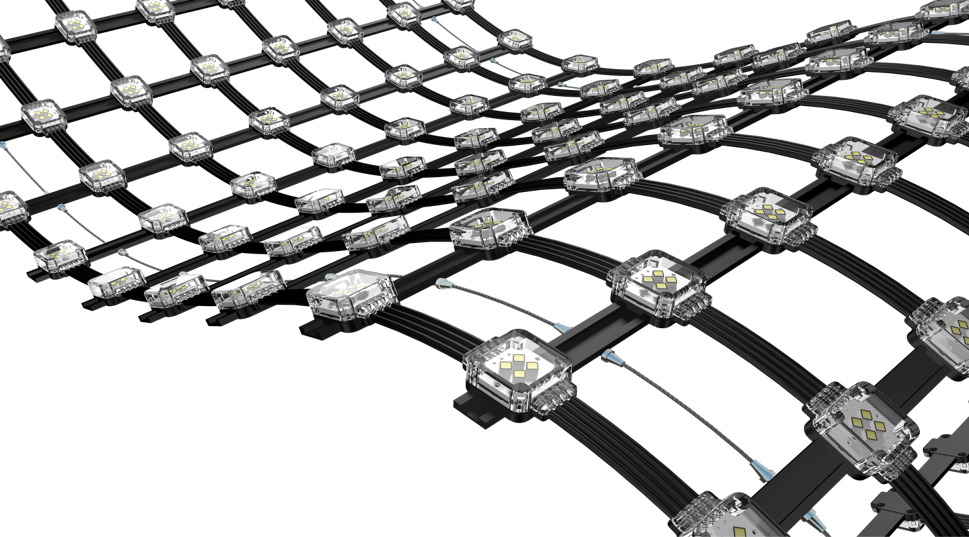

Soft and flexible, with various shapes

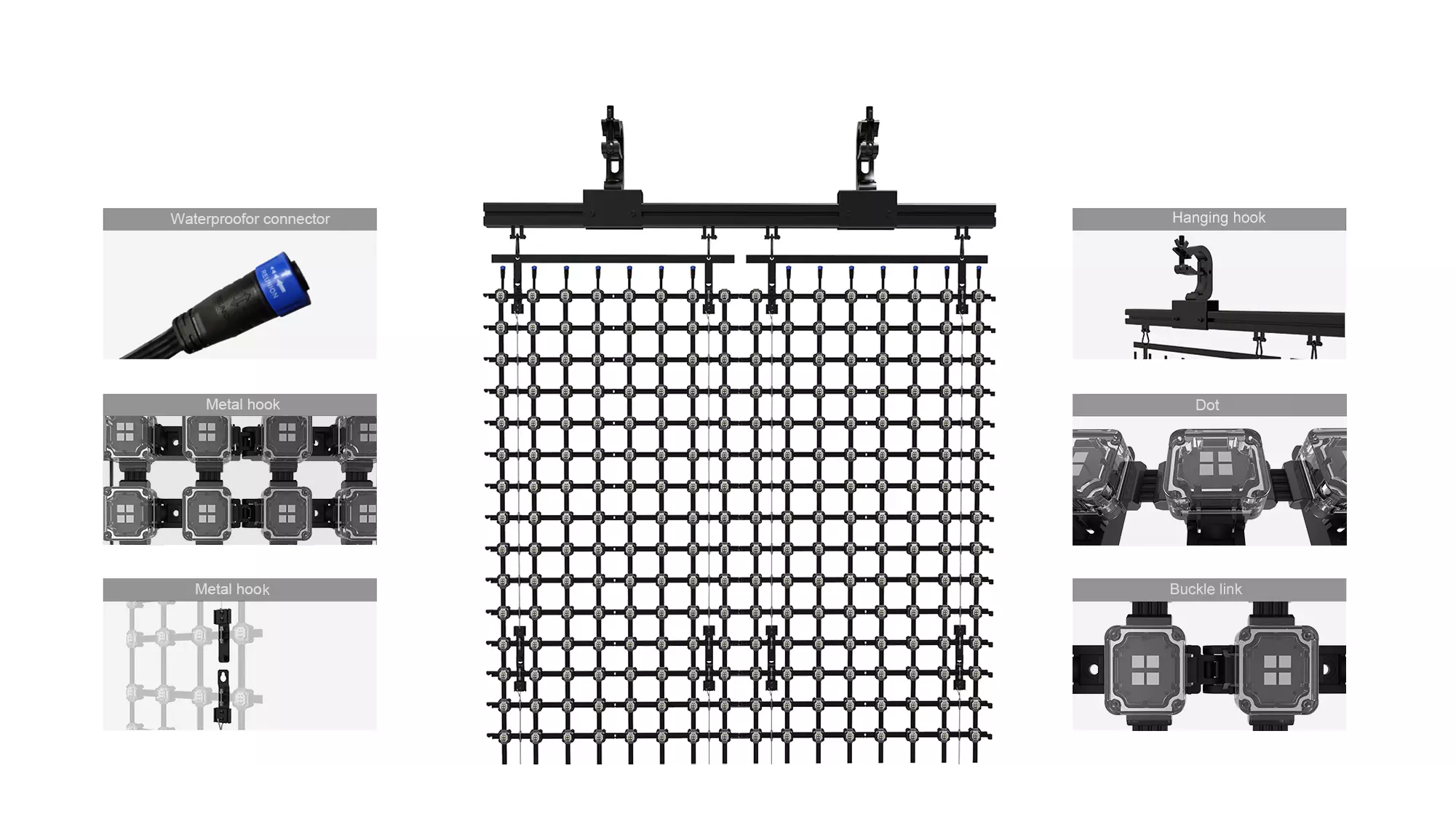

Flexible and can be installed in special shapes and points, not limited by application scenarios

Specifcations

Mesh-Series Specifcations
 Model No. LM1 LM2 LM4
  LED Type SMD3535 1LED SMD2727 2LEDs SMD2727 4LEDs
  Brightness 2.5CD/dot 5CD/dot 10CD/dot
  The rated voltage DC7.5V DC9V DC15V
  DOT.Power Consumption 0.45W/dot 0.6W/dot 0.9W/dot
  DOT Sixe 20x27x12.5mm
  DOT Weight <5g/pixel <5g/pixel <5g/pixel
  Pixel Pitch 30mm/40mm/50mm/60mm/80mm/100mm/xmm
  Module Resolution   8x100dot
  IP Rating(front/back) IP66
 Viewing Angle
140°(H)/140°(V)
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC
