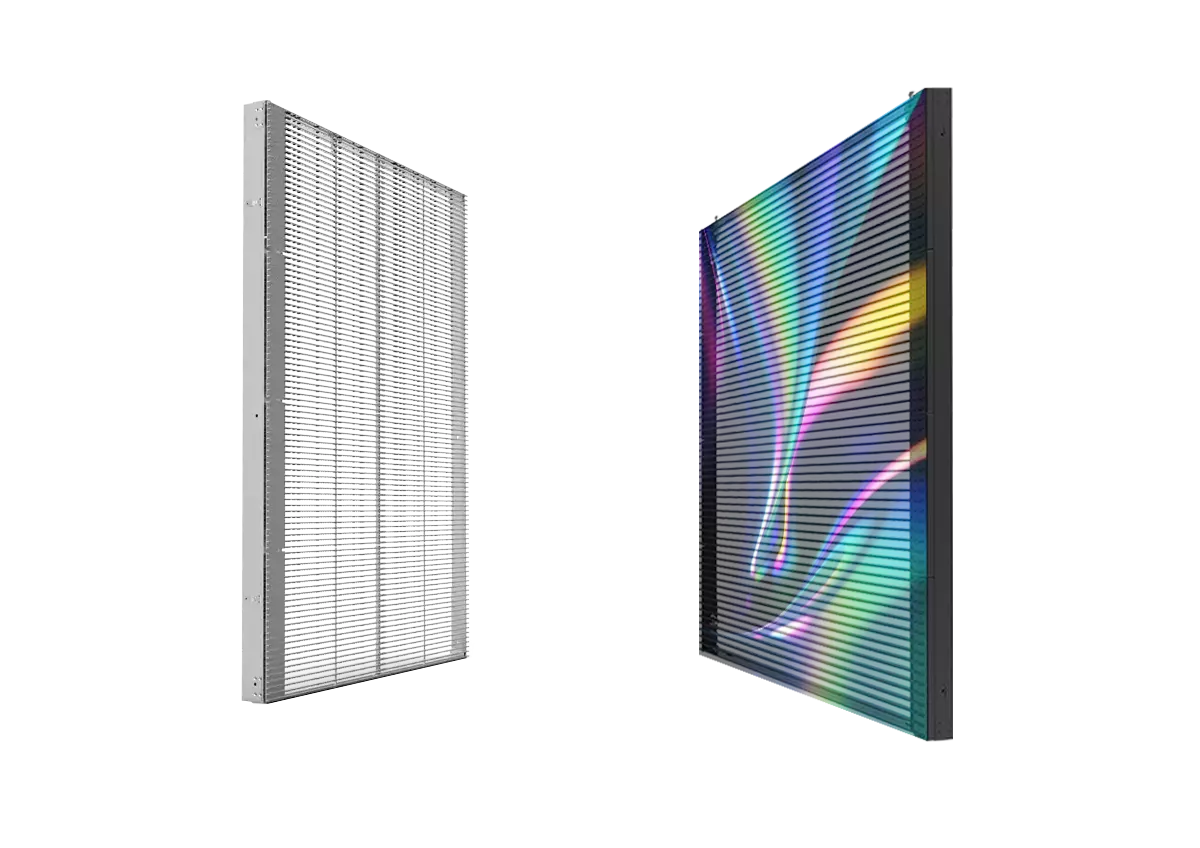

Transparent Window LED Display

Transparent Window LED Display

Simple and gorgeous,let technology light up the city,transparent and flawless, hidden in the invisible

Ultra-Thin and Light

Thin and light cabinet, ingenious craftsmanship,intelligent control, convenient operation,ingenious design, graceful and elegant.

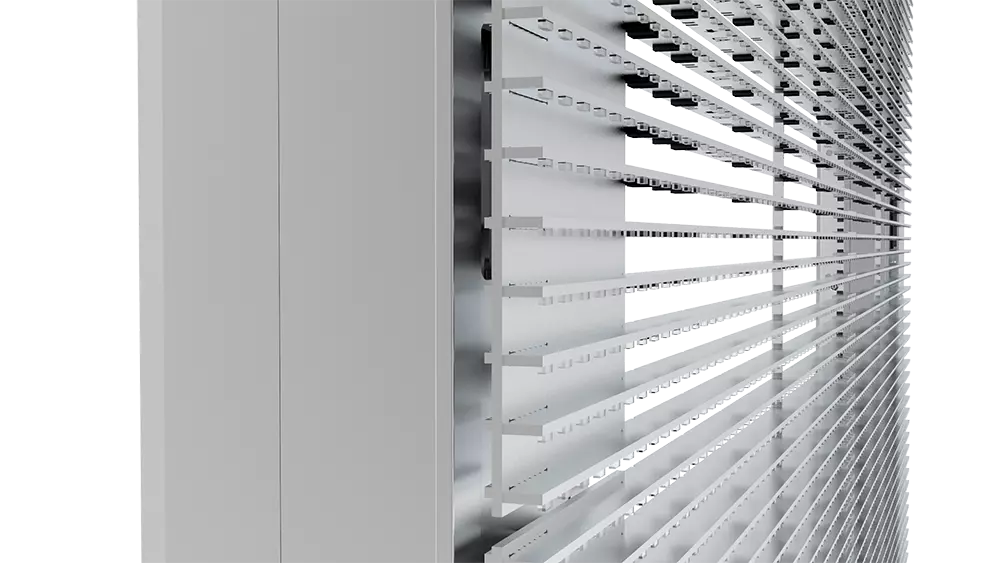

Cabinet Details

Designed with the latest aluminum profile technology perfect integration of aesthetics, structure, materias and cabinet

For medium and large stores

HDC ®Window/Ceiling Curtain series products are LED transparent displays developed for medium and large glass window applications, with features of high brightness, high transparency, flexible size and fast delivery, etc. It can be widely used in small and medium-sized glass window places such as banks, business halls, restaurants, jewelry stores, chain retail, convenience stores, pharmacies, and auto 4S shops.

High brightness and high transpareny

Product brightness is 5000cd/㎡, Product permeability can reach 85%



Specifcations

CC Specifcations
 Model No. CC3.9/7.8 CC7.9/10.4
  LED Type SMD2020/1921 SMD1921
  Brightness(cd/㎡) ≤800 / ≥4800 ≥4800
  Cabinet size(mm)

1000*1000 / 1000*500

500*1000 / 500*500

 1000*1000、1000*500、500*1000、500*500
  Display resolution 256*128 256*128
  Average Power(W/㎡) 144/288 288
  Transmittance ≥60% ≥60%
  Refresh rate(hz) ≥1920/ ≥3840 ≥1920/ ≥3840
  Cabinet weight   8.5±0.5kg  7±0.5kg
 Viewing Angle
140°(H)/140°(V)
 Operating Life
≥100,000hours
 Certificate
CE, ROHS, FCC
